TERRA AG develops and manufactures machinery for trenchless pipe installation. Since 1975, our name has been synonymous with Swiss precision, durable technology and reliable service.
Mixing capacity: 700 l/min (1x 2,000 l or 2x 2,000 l)
Highest efficiency and performance
The MS 700 fluid mixing system was designed to provide highest performance and efficiency at low costs. Powered by a proven HONDA mixing pump it offers up to 700 l/min of drilling fluid.
The MS 700 supports horizontal directional drilling systems of all sizes.
The MS 700 is standardly equipped with a 2,000 l tank. TERRA also offers a second tank for a higher drilling fluid capacity. Both tanks have integrated a special bottom flushing system. It prevents that the bentonite settles down at the bottom. It is fed from the top and can be opened with a user-friendly regulation valve.
The big funnel with cutting knife makes your HDD live easier on the jobsite. The cutting knife in the funnel opens the bentonite bags. A 25 kg bag of bentonite can be placed besides the funnel. Due to the venturi pipe, there is an under pressure in the whole system. The bentonite is sucked into the mixing unit which provides a reliable mixing.
The high-speed injector is equipped with a big funnel for 25 kg of bentonite. Next to it is a cleaning pipe with hose. It cleans the injector if it gets stuck.
The MS 700 has a very compact design. It can be installed easily on a truck without taking too much space. The mixing station can be lifted with a fork lift or with a crane or excavator at the four lifting eyes. If lifted, the tank must always be empty.
Your advantages
Highest mixing capacity and efficiency
The MS 700 works quickly and reliably so you don't waste any time on the construction site. With a mixing capacity of 700 l/min, the tank can be mixed within a very short time.
Venturi principle
Thanks to the Venturi nozzle, a vacuum is created so that the sucked bentonite is mixed quickly and efficiently. 25 kg bags can be cut and emptied in the hopper.

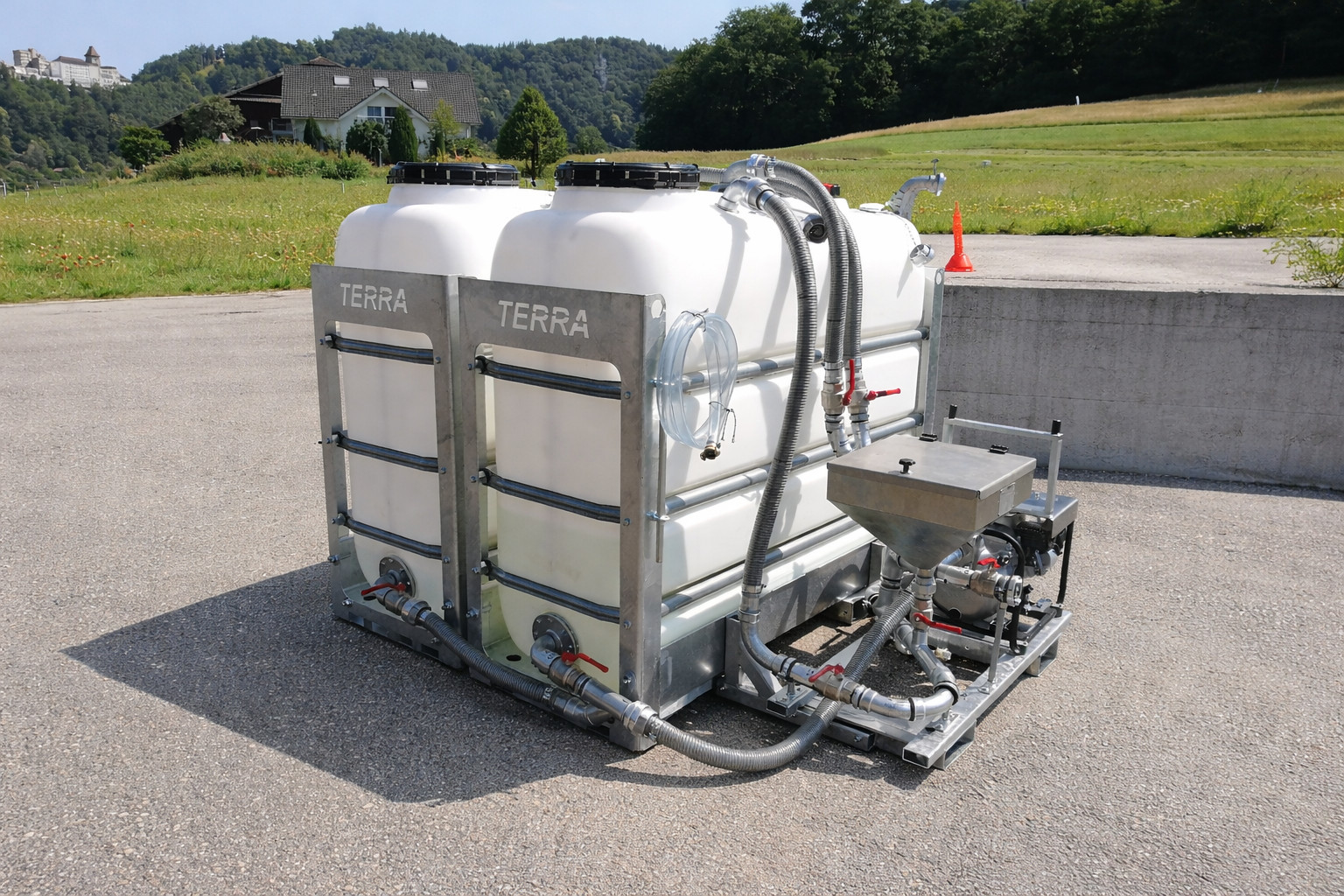

1x 2,000 l or 2x 2,000 l tank
As standard, the MS 700 is equipped with a 1x 2,000 l tank. An additional fresh water tank can be easily added, so that a total of 4,000 l tank volume is available.
Ideal for small drilling rigs
The MS 700 is ideally suited for the small TERRA-JET DJ 10 - DJ 20 drilling rigs. Thanks to the compact design, it does not take up much space and can also be installed on a truck.
